Server

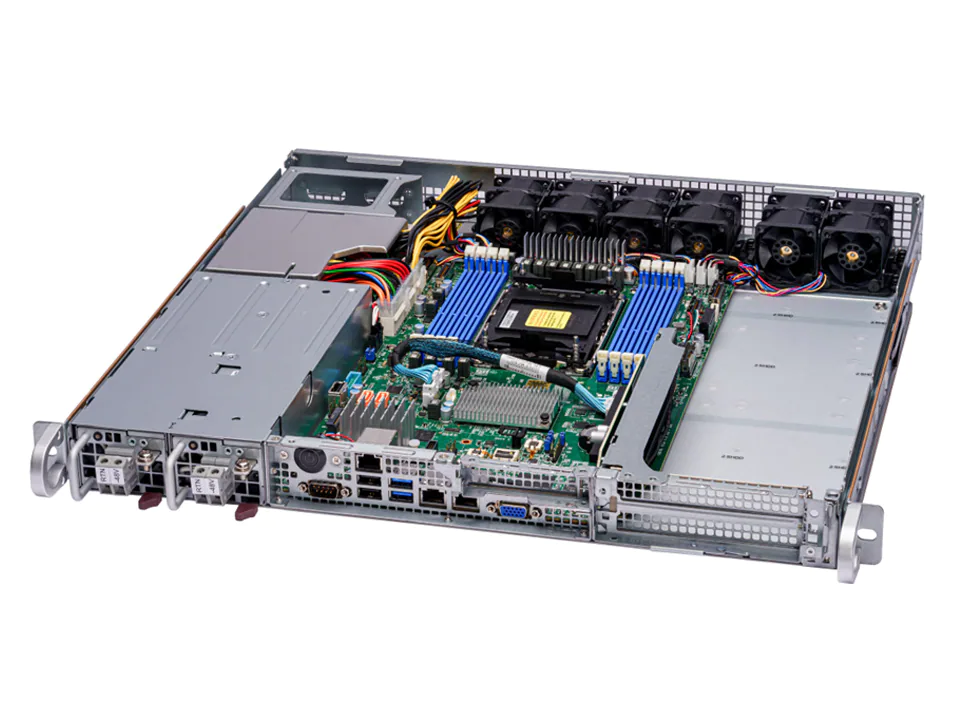

SYS-111E-FDWTR

Key Applications

  • Multi-Access Edge Computing
  • Outdoor DU of 5G Application
  • Flex-RAN, Open-RAN vBBU
  • Artificial Intelligence (AI) on Edge
  • Machine Learning (ML)

Key Features

  1. 4th Gen Intel® Xeon® Scalable Processors(Sapphire Rapids)
  2. 8 DIMMs; Up to 2TB 3DS ECC DDR5-4800: RDIMM/LRDIMM
  3. 2x 2.5" drive bays; 1 M.2 NVMe (PCIe 3.0 x2 from PCH)
  4. 6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s)
  5. 600W DC Redundant Power Supplies Level
Specifications
Product SKUs
SuperServer SYS-111E-FDWTR (No Paint)
Motherboard
Super X13SEW-TF
Processor
CPU
Cores
  • Up to 32C/64T; Up to 60MB Cache
Note
  • Supports up to 205W TDP CPUs (Aircooled)
System Memory
Memory
  • Memory Capacity: 8 DIMM slots
  • Up to 2TB: DDR5 ECC RDIMM/RDIMM
  • Memory Type: 4800MHz ECC DDR5 RDIMM/LRDIMM
Memory Voltage
  • 1.1 V
Error Detection
  • ECC
On-Board Devices
SATA
  • SATA3 (6Gbps)
Chipset
  • Intel® C741
Network Connectivity
  • 2x 10GbE port(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 10GbE (Intel® X550-AT2)
USB
  • 2 USB 2.0 port(s) (2 USB)
  • 2 USB 3.0 port(s) (2 USB)
Video
  • 1 VGA port(s)
Others
  • 1x COM Port COM port
Management
Software
  • IPMI 2.0
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • CPU thermal trip support, PEPI
  • Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 1U
Model
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 16.9" (429mm)
Package
  • 8" (H) x 27" (W) x 24" (D)
Weight
  • Gross Weight: 25.2 lbs (11.43 kg)
Available Color
  • No Paint
Front Panel
Buttons
  • Power On/Off
LEDs
    Expansion Slots
    PCI-Express (PCIe)
    • 1   slot(s)
    • 2 PCIe 5.0 x16 FHHL slot(s)
    Drive Bays / Storage
    Drive Bays
    • 2x 2.5" SATA drive bays
    M.2
    • 1x M-Key 22110/2280 (PCIe 3.0 x2 (NVMe))
    System Cooling
    Fans
    • 6 heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud(s)
    Power Supply
    1U 600W Redundant short depth DC48V input redundant power supply
    Total Output Power
    • 600W : (-44) - (-65) Vdc
    Dimension

    (W x H x L)
    • 54.5 x 40 x 220 mm
    +12V
    • Max: 50A
    5V SB
    • Max: 3A / Min: 0A
    Certification

      [ Test Report ]
    Operating Environment
    Environmental Spec.
    • Operating Temperature:
         0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)


    Parts List
    Standard Parts (Parts Included)
    Part Number Qty Description
    Motherboard / Chassis MBD-X13SEW-TF

    CSE-515B-R601W
    1

    1
    Super X13SEW-TF Motherboard

    1U Chassis
    Cable CBL-0082L 1 Y SPLIT SATA POWER ADAPTER, PB FREE
    CBL-0483L 2 29CM 30AWG SATA S/S CBL
    CBL-MCIO-1218M5 1 MCIO x8 (STR to STR),18CM,85OHM,RoHS
    CBL-MCIO-1218M5-1 1 MCIO x8 (STR to STR),18CM,85OHM,RoHS
    CBL-PWCD-0974 2 48VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS
    Fan FAN-0167L4 2 40x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers
    Manual MNL-2570-QRG 1 111E-FWTR/FDWTR Quick Reference Guide
    Riser Card RSC-W-66G5 1 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R
    RSC-WR-6G5+ 1 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoH
    Heatsink / Retention SNK-P0087P 1 1U Passive CPU HS for X13 Intel Eagle Stream Platform
    *Power Supply PWS-601S-1R 2 1U 600W Redundant DC48V input w/PMBus power supply, W54.5xH4
    *Power Distributor PDB-PT514-2824 1 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
    Part Number Qty Description
    AOC supporting bracket MCP-120-51501-0N 1 1U WIO supporting bracket for SC515B AOC(AOC-P3IMB-M-P2)
    TPM security module AOM-TPM-9670V-O 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
