Server

SYS-111AD-HN2

Key Applications

  • Video Surveillance
  • Office Server, DVR/NVR
  • Digital Signage, POS
  • Compact 1U Embedded System

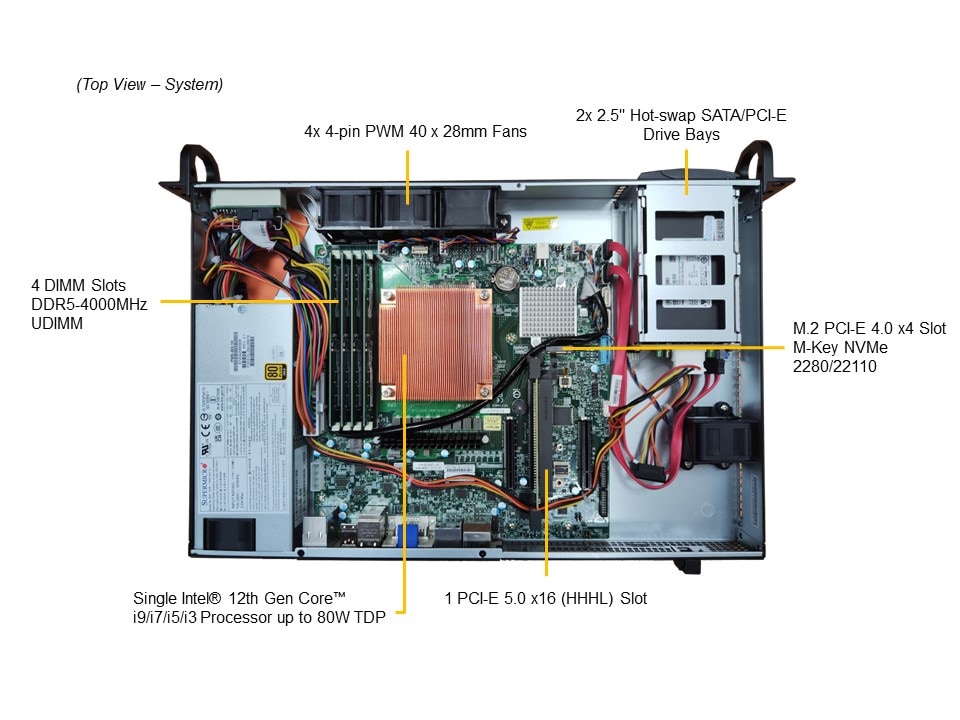

Key Features

  1. Single Socket LGA-1700 support 12th Gen Core i9/i7/i5/i3 Processor,up to 80W
  2. 4x DIMMs; Up to 128GB Unbuffered ECC/non-ECC UDIMM
  3. 1x PCIe Gen5 x16 HHHL slot
  4. 2 Hot-swap 2.5" SATA3 drive bays
  5. 4x 40x28mm 4-pin PWM fans
  6. 200W Low Noise AC-DC power supply with PFC
  7. Rear-access I/O: 2x 2.5GBased-T, 1x Dedicated IPMI, 4x USB3.2, 1x VGA, 1x DVI-D, 2x DP,1x HDMI 2.0b
Specifications
Product SKUs
SuperServer SYS-111AD-HN2 (Black)
Motherboard
Super X13SAZ-F
Processor
CPU
  • Single LGA-1700
  • 12th Gen Core i9/i7/i5/i3 Processor
System Memory
Memory
  • Memory Capacity: 4 DIMM slots
  • Up to 128GB: UDIMM
  • Memory Type: 4000MHz DDR5 UDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC/Non-ECC
On-Board Devices
SATA
  • SATA3.0
Chipset
  • System on Chip
Network Connectivity
  • 2x 2.5GbE BaseT with Intel® I225-LM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
SATA
  • 2 SATA (6Gbps) port(s)
LAN
  • 2x 2.5GbE
USB
  • 4 USB 3.2  Gen2 port(s) (4 USB)
Video
  • 1 VGA port(s)
Others
  • 1x DVI-D
  • 1x HDMI 2.0b
  • 1x Line Out
  • 1x Mic In
  • 2x DP 1.4
Management
Software
  • IPMI 2.0
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
Temperature
  • Platform Environment Control Interface (PECI) 3.0 support
  • SuperDoctor® 5
  • System resource alert via SuperDoctor®5
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-510FT-203B
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 11.3" (287mm)
Package
  • 6.1" (H) x 25.4" (W) x 19.8" (D)
Weight
  • Net Weight: 10 lbs (4.54 kg)
  • Gross Weight: 14.1 lbs (6.4 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe)
  • 1 PCIe 5.0 x16 HHHL slot(s)
Drive Bays / Storage
Hot-swap
  • 2x 2.5" hot-swap SATA/PCIe drive bays
M.2
  • 1 M.2 NVMe
  • M-Key, 2280/22110
System Cooling
Fans
  • 4x 4-PIN PWM 40x28mm Fan(s)
Power Supply
1U 200W Multi-output power supply Gold level w/20pin
Dimension

(W x H x L)
  • 76.5 x 40.3 x 192.8 mm
AC Input
  • 200W: 100-240Vac / 2.6A Max / 50-60Hz
+12V
  • Max: 16A / Min: 0A (100Vac-240Vac)
Certification   Gold Level




  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
Note
  • Acceptable AC Input Voltage: 100-240Vac / 5.5A-10A / 50-60Hz
  • Operating Temperature: Continuous 0°C ~ 40°C (32°F ~ 104°F), Short term -5°C ~ 55°C (23°F ~ 131°F)


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13SAZ-F

CSE-510FT-203B
1

1
Super X13SAZ-F Motherboard

1U Chassis
Fan FAN-0065L4 1 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Parts MCP-150-00015-0B 1 Rubber pad, 3.0mm H, 10x10mm
MCP-260-00179-0B 1 1U 510 I/O Shield for X13SAZ with EMI Gasket
Rear Window MCP-240-00091-0N 2 1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
Air Shroud MCP-310-00097-0B 1 Air shroud for 4-DIMM size,HF,RoHS
Manual MNL-2544-QRG 1 111AD-HN2 Quick Reference Guide
Riser Card RSC-S-6G5 1 1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
Heatsink / Retention SNK-P0086 1 1U Passive Skived-fin CPU Heat Sink for SYS-111AD-HN2
*Backplane BPN-SAS-510T 1 2-port 1U (SC510T) direct-attached backplane, support up to 2x 2.5-inch SAS/SATA HDD/SSD
*Cable CBL-0061L 2 31.5CM SATA FLAT S-S PBF
*Power Supply PWS-203-1H 1 1U 200W Multi-output 80Plus Gold PWS
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
TPM security module AOM-TPM-9671H-O 1 SPI capable TPM 1.2 with Infineon 9671 controller with horizontal form factor
