Server

SYS-E300-13AD

Key Applications

  • Digital Signage
  • AI Inference and Machine Learning
  • Surveillance Security Server
  • Medical Applications

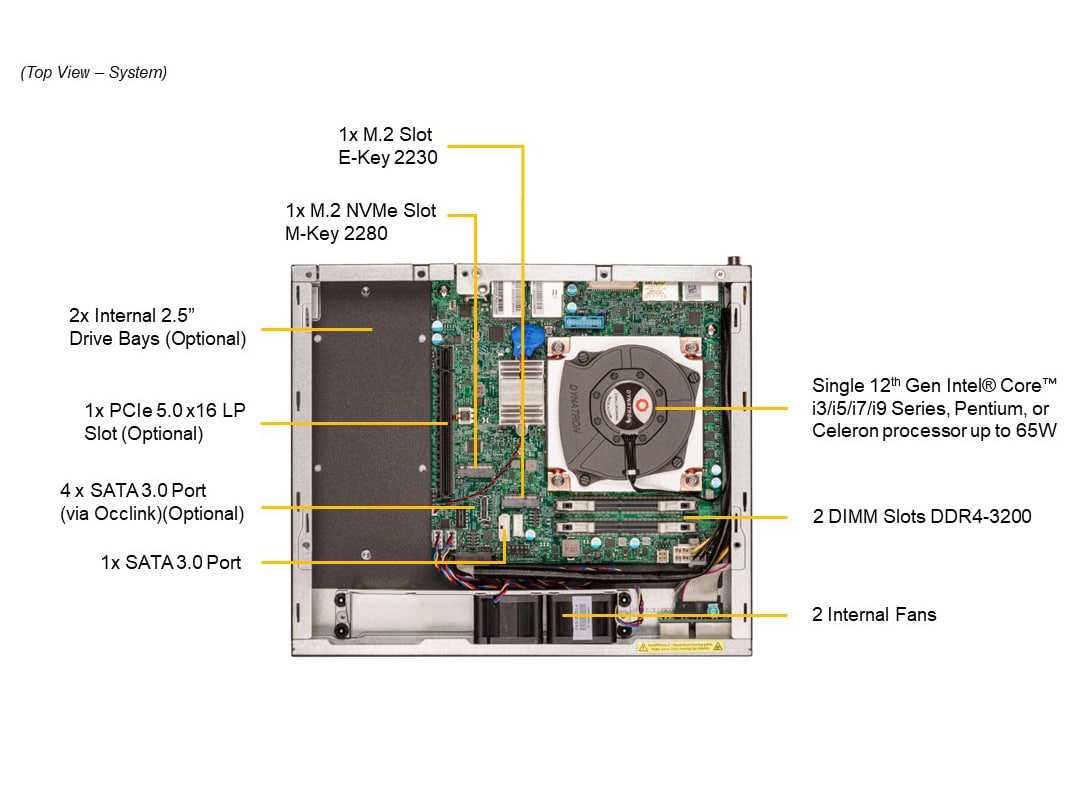

Key Features

  1. 12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor (LGA-1700)
  2. Intel® Q670E
  3. 2x DDR4-3200MHz SO-DIMM max 64GB
  4. Support 1x PCIe 5.0 x16 Slot (Optional)
    Support M.2 M/E-Key
  5. AMT vPro Supported
  6. Support up to 2x 2.5" drive bays (Optional)
  7. Quad Independent Display by 2x HDMI and 2x DP
Specifications
Product SKUs
SuperServer SYS-E300-13AD (Black)
Motherboard
Super X13SAV-LVDS
Processor
CPU
  • Single Socket FCLGA1700
  • 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Cores
  • Up to 16C/24T; Up to 30MB Cache
System Memory
Memory
  • Memory Capacity: 2 DIMM slots
  • Up to 64GB: DDR4 SO-DIMM
  • Memory Type: 3200MHz DDR4 SO-DIMM
Memory Voltage
  • 1.2 V
Error Detection
  • Non-ECC
On-Board Devices
Chipset
  • Intel® Q670E
Network Connectivity
  • 1x 1GbE BaseT with Intel® i210-AT
  • 1x 2.5GbE GbE with Intel® I225-LM

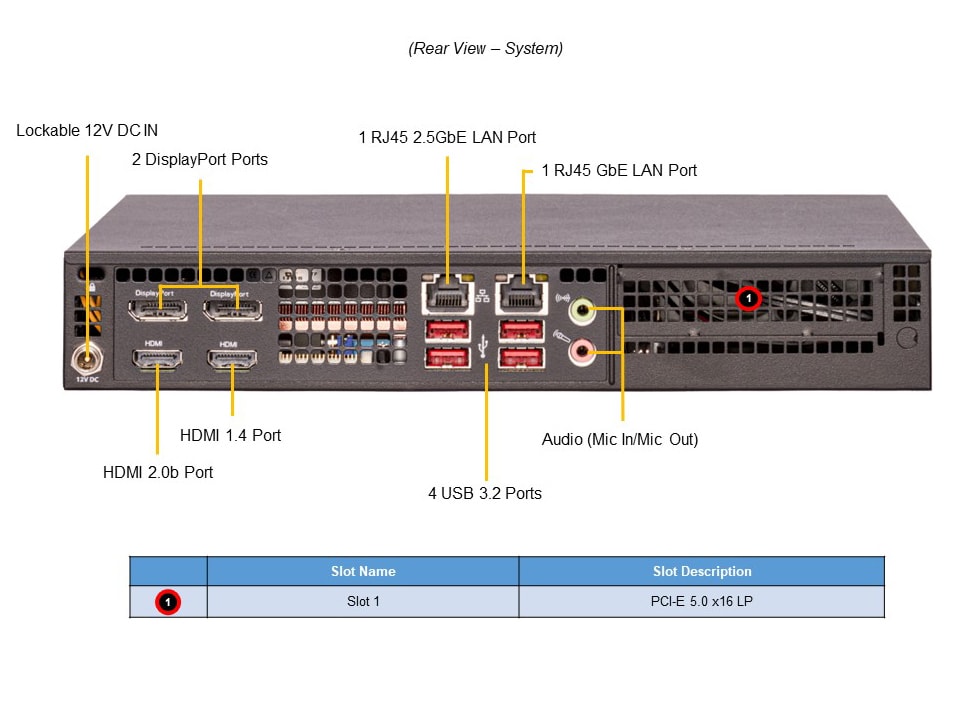

Input / Output
SATA
  • 1 SATA (6Gbps) port(s)
LAN
  • 1 RJ45 GbE (Intel® i210-AT)
  • 1 RJ45 2.5 GbE (Intel® i225-LM)
USB
  • 4 USB 3.2  Gen2 port(s) (4 USB)
Others
  • 1x HDMI 1.4
  • 1x HDMI 2.0
  • 1x Line Out
  • 1x Mic In
  • 2x DisplayPort
System BIOS
BIOS Type
  • AMI 512MB UEFI
BIOS Features
  • ACPI 6.3
  • PCI FW 3.0
  • SMBIOS 3.3
  • UEFI 2.7
Management
Software
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • Mini-1U
Model
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 10" (254mm)
Depth
  • 8.9" (226mm)
Package
  • 10.87" (H) x 15" (W) x 5.59" (D)
Weight
  • Net Weight: 2.76 lbs (1.25 kg)
  • Gross Weight: 3.7 lbs (1.68 kg)
Available Color
  • Black

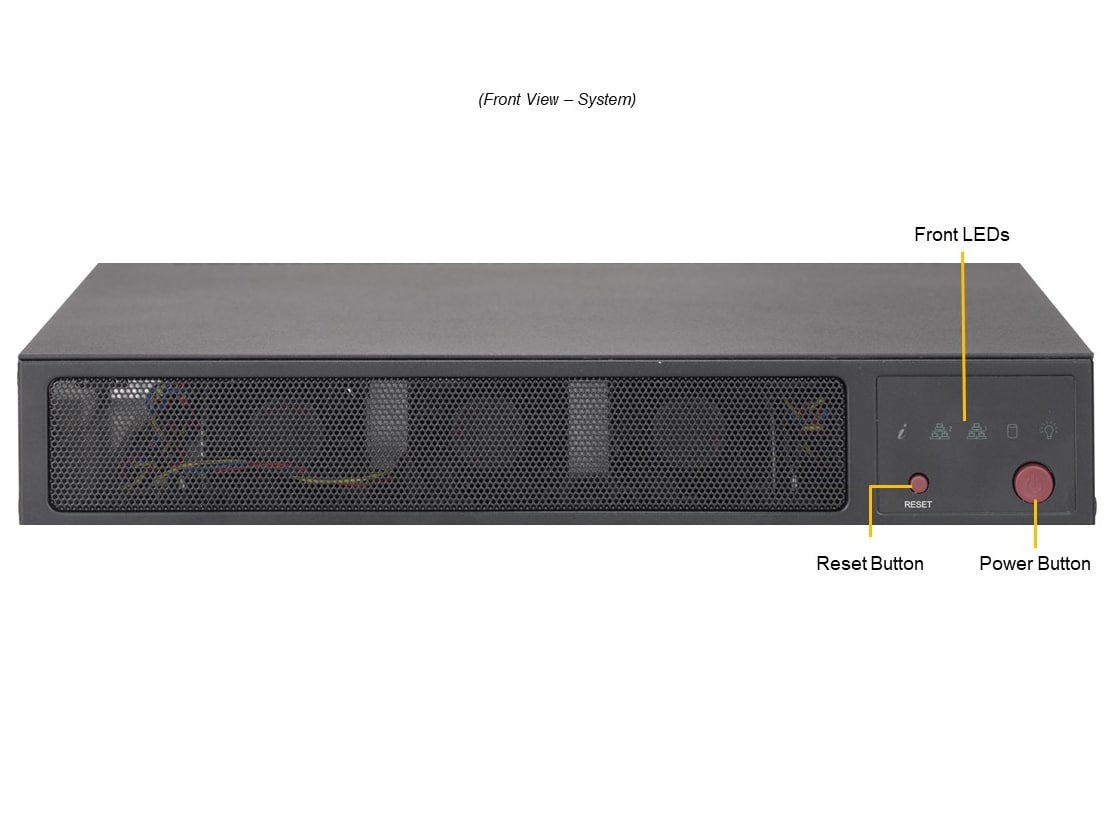

Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe)
  • 1 1x PCIe 5.0 x16 Low Profile slot(s)
Note
  • Either support expansion slot or 2nd 2.5" drive.
  • Need to order optional parts for riser card.
Drive Bays / Storage
Drive Bays
  • 1x 2.5" SATA drive bays
M.2
  • 1x E-Key 2230 (PCIe 3.0 x1 / USB2.0)
  • 1x M-Key 2280 (PCIe 4.0 x4 (NVMe))
System Cooling
Fans
  • 2x 4-PIN PWM 40x40x28mm Fan(s)
Power Supply
180W 12V Lockable DC Power Adapter
AC Input
  • 180W: 100-240Vac / 15A Max / 47-63Hz
Operating Environment
Environmental Spec.
  • Operating Temperature:
       0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13SAV-LVDS

CSE-E300
1

1
Super X13SAV-LVDS Motherboard

Mini-1U Chassis
Cable CBL-0473L 1 21CM 30AWG SATA CBL, S-S
CBL-PWEX-0982 1 PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG
Fan FAN-0065L4 2 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Power Supply MCP-250-10133-0N 1 180W DC power adapter with US power cord 18AWG 6ft
Parts MCP-260-00167-0B 1 1U E300, 101F I/O Shield for X13SAV-LVDS with EMI Gasket
Manual MNL-2558-QRG 1 E300-13AD Quick Reference Guide
Heatsink / Retention SNK-P0085A4 1 1U Active CPU Heat Sink for E300-13C Embedded Server
Optional Parts List
Part Number Qty Description
Dual 2.5" drive bay kits CBL-SAST-0886 1 SATA 15pin x2 to 4pin /P2.5,40CM,22AWG,RoHS
CBL-SAST-0933 1 OcuLink v 1.0 to 4x SATA 7-pin,INT, 50CM,32AWG,RoHS
Expansion slot kits RSC-S-6G5 1 1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
Rackmount kits MCP-290-30002-0B 1 CSE-E300 Rackmount kit with power adapter holder
